IN-STOCK or Short Lead Time Equipment
IMG manufactures several standard units that are typically available in stock or have minimal lead time. Some in-stock units are also available for RENT or LEASE (see *)
Click on the side menu for available items.

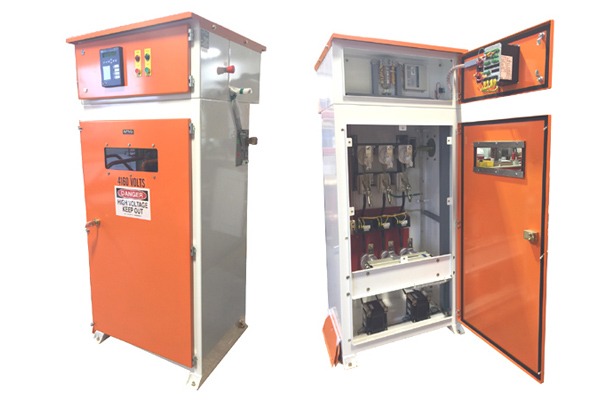

Stand-Alone Feeder
This freestanding unit is typically used for Motor Control and Protection or Feeder Protection. The Outdoor Rated enclosure is equipped with the following equipment:
ABB 5kV / 600A Rated Loadbreak Switch
Tavrida Vacuum, Magnetically-operated, Fixed-mount Breaker
3x Current Transformers
2x 500VA Control Transformers
1x Ground Fault Current Transformer
SEL-751A Feeder Protection Relay or SEL710 Motor Protection Relay
IMG has 0 units available in stock (Available as Short Lead Item) ~ FOR SALE or LEASE
Please contact us for pricing @ Sales Requests
Stand-Alone Fused Disconnect
This freestanding, outdoor-rated enclosureis equipped with the following equipment:
ABB 5kV / 600A Rated Loadbreak Switch
3x 5.5kV clip in Fuses 200A up to 600A rated
IMG has 0 units available in stock (Available as Short Lead-Time Item) ~ FOR SALE or LEASE
Please contact us for pricing @ Sales Requests

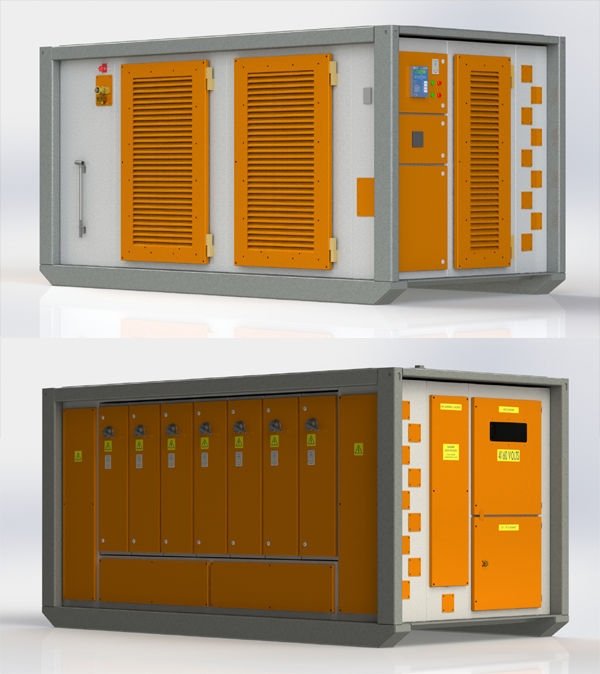

[PDC1000-05kV] 4160V, 1000kVA Power Distribution Center
The Power Distribution Center consists of five sections:
5kV Incoming Section
5kV Breaker Section
Transformer Section
600V Distribution Section
Control Section
Lighting Panel 240/120V
This Compact Substation
features the following:
Compact, Modular (separate sections) & Corrosion Resistant Housing
Side-Operated 5kV/600A ABB Loadbreak Switch & Tavrida Vacuum, Magnetically-operated Circuit Breaker
2x 500VA, 4160V: 120V Control Transformer connected in open Delta
1000kVA, 4160V: 600/347V Delta - Wye Resin filled Transformer
SEL latest technology Control Relays System for on/off-site remote control & monitoring
Over-Current, Over/Under-Voltage, Thermal & Frequency Protection
7x 600V/400A Modular/Removeable Breaker Out-goers
Ground Fault and Ground Check Monitor & Indicating Device
Key Interlock Safety System
Distribution 240/120V panel c/w 45kVA transformer
IMG has 1 unit available in stock ~ FOR SALE, LEASE or RENT
Please contact us for pricing @ Sales Requests
[PDC1000-15kV] 13.8kV, 1000kVA Power Distribution Center
The Power Distribution Center consists of five sections:
15kV Incoming Section
15kV Breaker Section
Transformer Section
600V Distribution Section
Control Section
Lighting Panel 240/120V
This Compact Substation
features the following:
Compact, Modular & Corrosion Resistant Housing
Side-Operated 5kV/600A ABB Loadbreak Switch & Tavrida Vacuum, Magnetically-operated Circuit Breaker
2x 1500VA, 13800V: 120V Control Transformer connected in open Delta
1000kVA, 13800V : 600/347V Delta - Wye Resin filled Transformer
600V Modular Out-goers with latest technology Control Relays
SEL latest technology Control Relays System for on/off-site remote control & monitoring
Over-Current, Over/Under-Voltage, Thermal & Frequency Protection
7x 600V/400A Modular/Removeable Breaker Out-goers
Ground Fault and Ground Check Monitor & Indicating Device
Key Interlock Safety System
Distribution 240/120V panel c/w 45kVA transformer
IMG has 2 unit available in stock ~ FOR SALE, LEASE or RENT
Please contact us for pricing @ Sales Requests
[PDC5000-4F] 4160V 4 Feeder Switchgear
This Switchgear consists of:
5kV Incoming Breaker
5kV Main Breaker Section
4x 5kV Distribution Feeders
Control/Protection Section
This Compact Switchgear
features the following:
Compact, Modular & Corrosion Resistant Housing
Side-Operated 5kV ABB Loadbreak Switches & Tavrida Vacuum, Magneically-operated Breakers
2x 500VA, 4160V: 120V connected in open Delta and 1x 1500VA control transformer
Distribution Breakers have , Opposite Side-Operated 5kV/600A ABB Loadbreak Switch and 15kV/800A Tavrida Magnetically operated Vacuum Circuit Breaker
SEL latest technology Control Relays System for on/off-site remote control & monitoring
Over-Current, Over/Under-Voltage, Thermal & Frequency Protection
Ground Fault and Ground Check Monitor & Indicating Device
Key Interlock Safety System
0-Arc Flash protection permissible
IMG has 2 unit available in stock ~ FOR SALE, LEASE or RENT
NOTE: New units availabale in 2-4 Feeder.
Please contact us for pricing @ Sales Requests

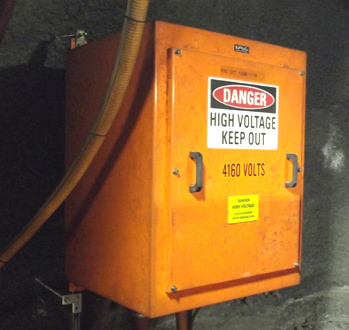

5kV Junction Box
IMG 5kV Junction boxes are to facilitate connection of medium voltage cables. Connection bus bars are 1000A rated housed in non-corrosive, p/o steel enclosure and powder-coated Safety Orange color. These units are wall-mount type.
IMG has 3 units available in stock
Please contact us for pricing @ Sales Requests

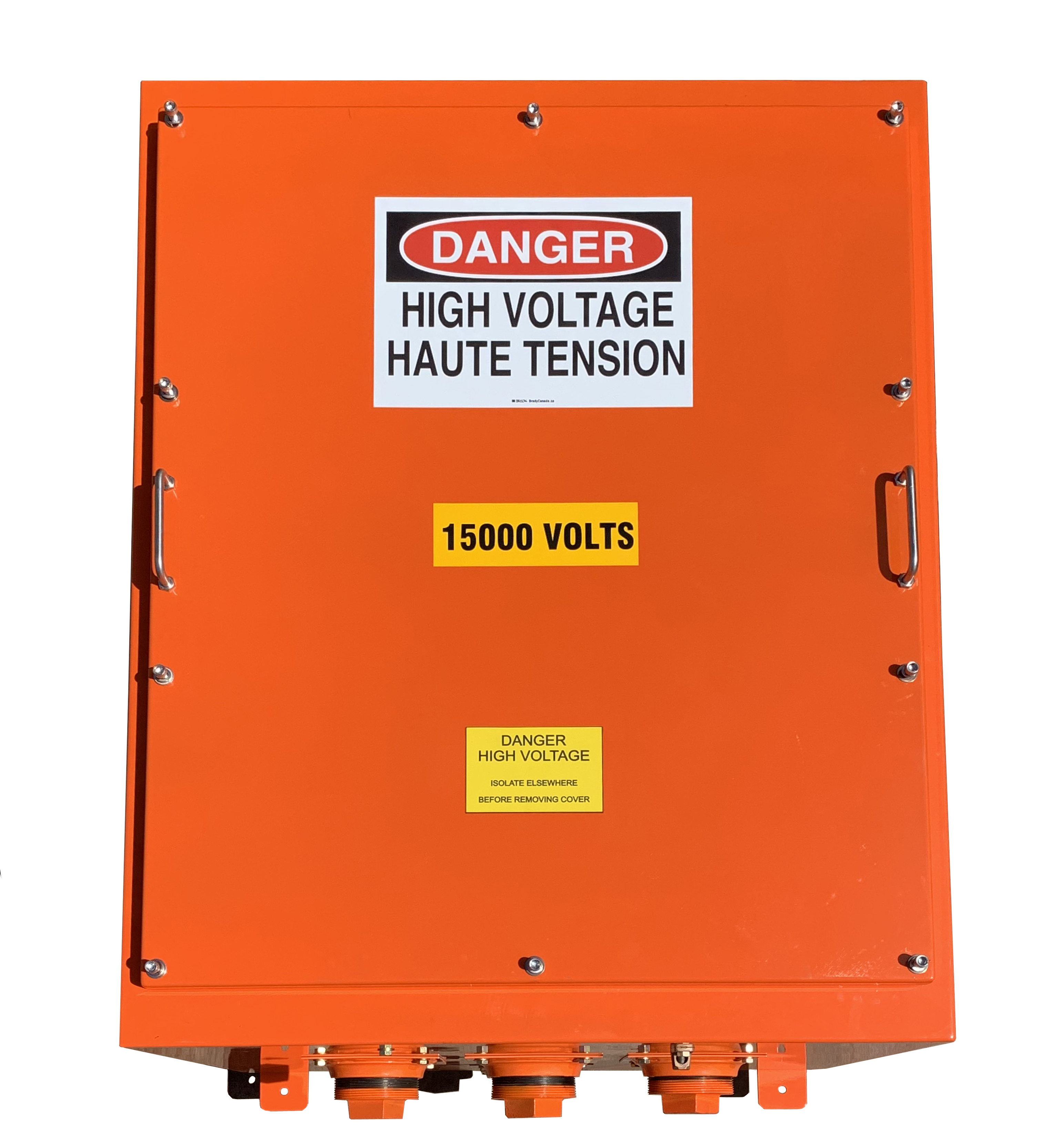

15kV Junction Box
IMG 15kV Junction boxes are unique design to facilitate straight connection of medium voltage cables. Connection bus bars are 1000A rated housed in non-corrosive, p/o steel enclosure and powder-coated Safety Orange color. These units are wall-mount type.
IMG has 1 unit available in stock
Please contact us for pricing @ Sales Requests
600V and up to 200HP Power Take-Off Panels
Modular PTO600V Panels are designed to control, protect and isolate portable, electrical equipment used in the harsh environments of underground mining and tunnelling operations. Typical PTO600 application includes the use as a remote start/stop control to mobile equipment and/or to act as main supply disconnect with overcurrent protection and G/F monitoring.
PTO-600 is CSA Certified and meets CSA Standard M421-00 Use of Electricity in Mines.
PRODUCT FEATURES
Non-Corrosive, Stainless Steel Enclosure & Splitter
Incoming and outgoing feeder cables is housed is separate top mounted connection box
Additional Ground Lugs installed inside the Enclosure
NEMA Contactor with Breaker and Flex ShaftTM Handle Mechanism
Startco® SE-105 Ground-Fault Ground-Check Monitor
START/STOP Pushbuttons
Amperage Rated
120VAC Control Power
PRODUCT OPTIONS
Underground Pumping c/w SyCom Pump Saver Modules
Soft Starts c/w Built-in Contactors
Equipment-Mount Couplers
Variable frequency speed (30-200hP)
IMG maintains a stock of several units (30-200hP units)
Please contact us for pricing @ Sales Requests
IMG Cable Reel Stand
These heavy-duty cable reel stands have a capacity of 3T and can accommodate 80 inch diameter reels. They are manufactured from heavy wall tubing and are painted with durable powder-coated method. Standard safety orange color is used, but other colors available upon request.
IMG has several units available in stock
Please contact us for pricing @ Sales Requests
