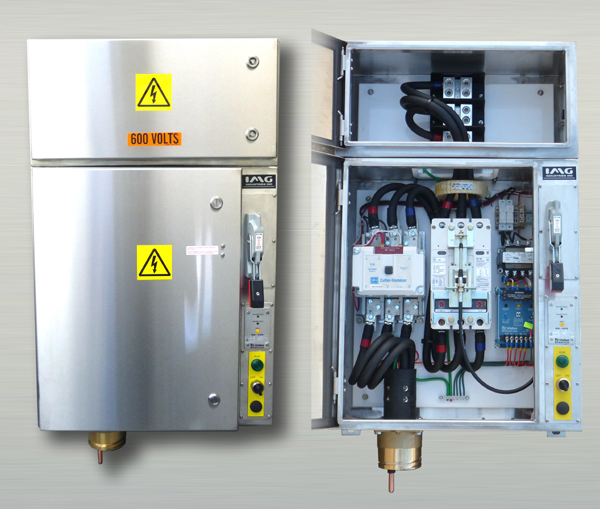

IMG Power Take Off Units

PTO-600 Panels are designed to control, protect and isolate portable, electrical equipment used in the harsh environments of underground mining and tunnelling operations. Typical PTO-600 application includes the use as a remote start/stop control to mobile equipment and/or to act as main supply disconnect with overcurrent protection and G/F monitoring.

Enclosed in non-corrosive, stainless-steel cabinets, PTO-600 ensures the protection of interior components and thus reliable operation in the field. These panels can be used as stand-alone units or as a complete distribution center. Both the Main Enclosure and the Splitter Enclosure are designed to be modular. These units do not require any drilling, tapping or cutting in order to be banked. The modular design also allows for easy interchange of panels should a fault occur and thus preventing machine and production downtime.

PTO-600 is CSA Certified and meets CSA Standard M421-00 Use of Electricity in Mines.

PRODUCT FEATURES

• Non-Corrosive, Stainless Steel Enclosure & Splitter
• Additional Ground Lugs installed inside the Enclosure
• NEMA Contactor with Breaker and Flex ShaftTM Handle Mechanism
• Startco® SE-105 Ground-Fault Ground-Check Monitor
• Startco® RK-105 Ground Fault Remote Indication and Reset
• START/STOP Pushbuttons
• Amperage Rated
• 120VAC Control Power

PRODUCT OPTIONS

• Underground Pumping c/w SyCom Pump Saver Modules
• Soft Starts c/w Built-in Contactors
• Equipment-Mount Couplers

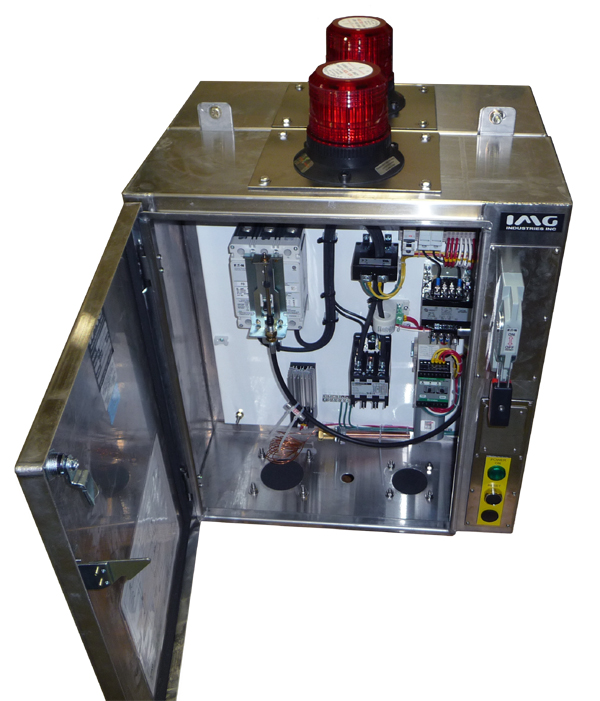

IMG Heat Trace Panels

Heat Trace Panels provide temperature control, monitoring and power management. These panels are a cost-effective and convenient means to provide protection.

Units are housed in non-corrosive, stainless or p/o powder-coated steel enclosure NEMA rated as per customer requirements. They can be wall-mounted or stand-alone.

Units are CSA Certified and meets CSA Standard M421-00 Use of Electricity in Mines.

PRODUCT FEATURES

• Additional Ground Lugs installed inside the Enclosure
• NEMA Contactor with Breaker and Flex ShaftTM Handle Mechanism
• Startco® SE-704 Earth Leakage Relay
• Ambient Sensing Thermostat
• Remote Operation/Alarm/Reset
• Amperage Rated
• 120VAC Control Power
• Current Sensing Relay Protection

PRODUCT OPTIONS

• START/STOP Pushbuttons * Selector Switch
• Alarm Horn/Relay (local or remote)
• Power Terminals

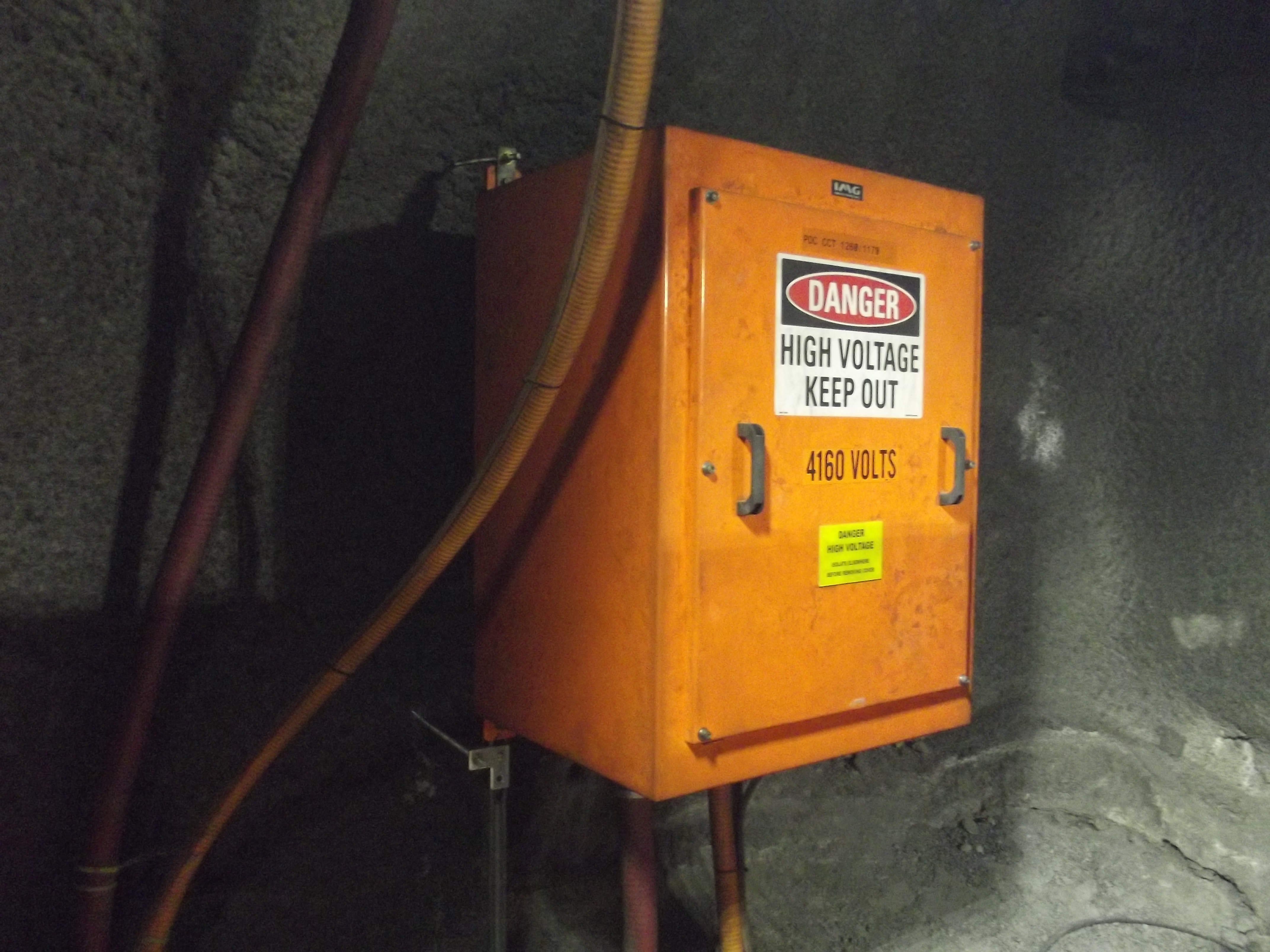

IMG Junction Boxes

IMG Junction boxes are designed to facilitate the connection of medium voltage cables. They form an integral part of a circuit and personnel protection system.

Units are housed in non-corrosive, stainless or p/o powder-coated steel enclosure NEMA rated as per customer requirements. They can be wall-mounted or stand-alone.

Units are CSA Certified and meets CSA Standard M421-00 Use of Electricity in Mines.

FEATURES / OPTIONS

• Available in different sizes for various power requirements
• Wall-mount OR Stand-mount option
• Polyester-coated P/O Steel or Stainless-Steel Enclosures
• Optional NEMA 3 or 4 Enclosure
• Termination Connection Points
• Internal and External Ground Connection Points
• Fitted with Threaded-Flange Entrance Fittings and/or Equipment-Mount Couplers
• Optional Thermographic Windows
